8 Roof Flashing Types (Pictures)

Roof flashing is an essential component in the construction and maintenance of a durable, leak-resistant roof. It acts as a protective barrier that directs water away from critical areas such as chimneys, valleys, walls, and other protrusions. Understanding the different roof flashing types and their specific applications is crucial for homeowners, builders, and roofing professionals alike. This comprehensive guide will include:

• Understanding roof flashing
• Common types of roof flashing
• Choosing the right material for roof flashing
• Installation tips for roof flashing

🤔 Understanding Roof Flashing

Roof flashing is a thin material, usually made from metal, designed to prevent water from entering the structure at joints, seams, or areas where different roofing materials meet. Its primary function is to direct water away from vulnerable points and into the gutters or off the roof, preventing leaks and water damage. Flashing can be made from various materials, including aluminum, copper, galvanized steel, and lead, each offering distinct advantages and disadvantages.

🏠 8 Common Types of Roof Flashing

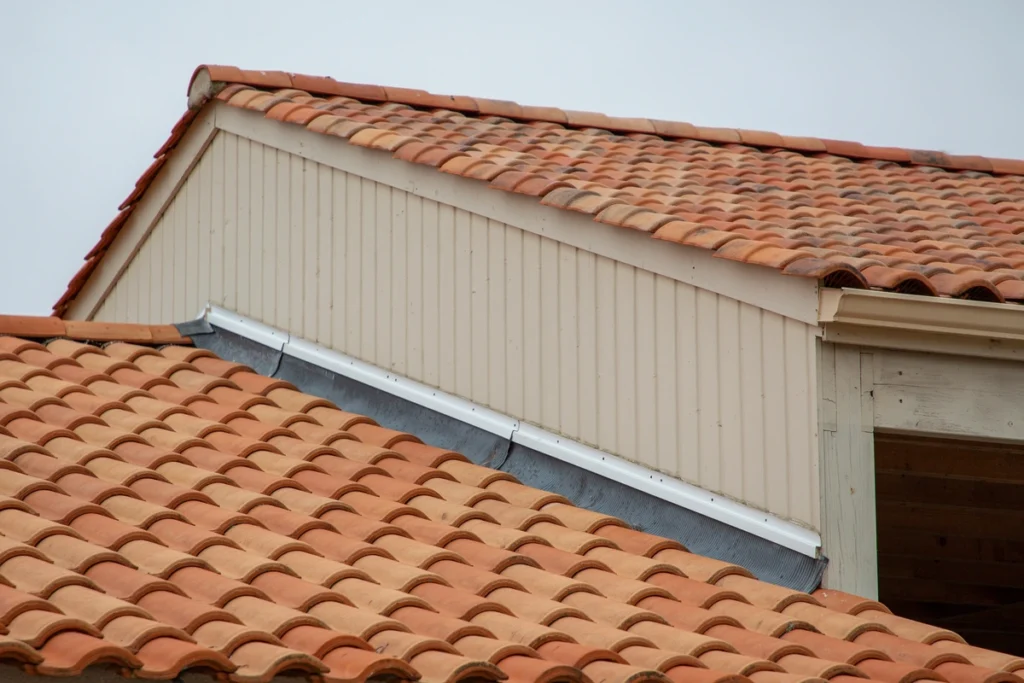

1. Step Flashing

Step flashing is used where the roof meets a vertical surface, such as a wall or chimney. It consists of a series of L-shaped metal pieces that overlap each other, ensuring a watertight seal. The upper edge of each piece is tucked under the shingles, while the lower edge extends over the shingle below. This overlapping arrangement directs water away from the joint and onto the roof, where it can safely drain away.

Applications:

• Along the sides of chimneys
• Roof-to-wall intersections
• Dormer walls

Materials:

• Aluminum (lightweight and resistant to corrosion)
• Galvanized steel (durable and cost-effective)
• Copper (long-lasting and aesthetically pleasing)

2. Valley Flashing

Valley flashing is installed in the valleys of a roof, where two roof planes intersect. These areas are particularly vulnerable to water accumulation, making effective flashing crucial. Valley flashing is typically a V-shaped or W-shaped metal strip that channels water down the valley and into the gutters.

Applications:

• Roof valleys

Materials:

• Aluminum
• Galvanized steel
• Copper

3. Drip Edge Flashing

Drip edge flashing is installed along the edges of the roof to direct water away from the fascia and into the gutters. It also prevents water from seeping under the shingles and causing rot or damage to the underlying structures. Drip edge flashing is typically an L-shaped strip of metal that runs along the eaves and rakes of the roof.

Applications:

• Roof edges (eaves and rakes)

Materials:

• Aluminum
• Galvanized steel
• Vinyl (less common, typically used for budget installations)

4. Counter Flashing

Counter flashing is used in conjunction with other flashing types, particularly step flashing. It is installed on vertical surfaces, such as chimneys or walls, and overlaps the base flashing to create a waterproof barrier. Counter flashing can be embedded in mortar joints or secured with screws and sealant.

Applications:

• Chimneys
• Parapet walls
• Roof-to-wall intersections

Materials:

• Copper
• Galvanized steel
• Aluminum

5. Vent Pipe Flashing

Vent pipe flashing is designed to seal around roof penetrations, such as plumbing vents or exhaust pipes. This type of flashing typically features a conical shape with a flange at the base that sits flat on the roof. The top of the cone is flexible and can be adjusted to fit snugly around the pipe, preventing water from seeping in.

Applications:

• Plumbing vents
• Exhaust pipes
• Electrical conduits

Materials:

• Rubber (flexible and easy to install)
• Aluminum (durable and weather-resistant)
• Lead (malleable and long-lasting)

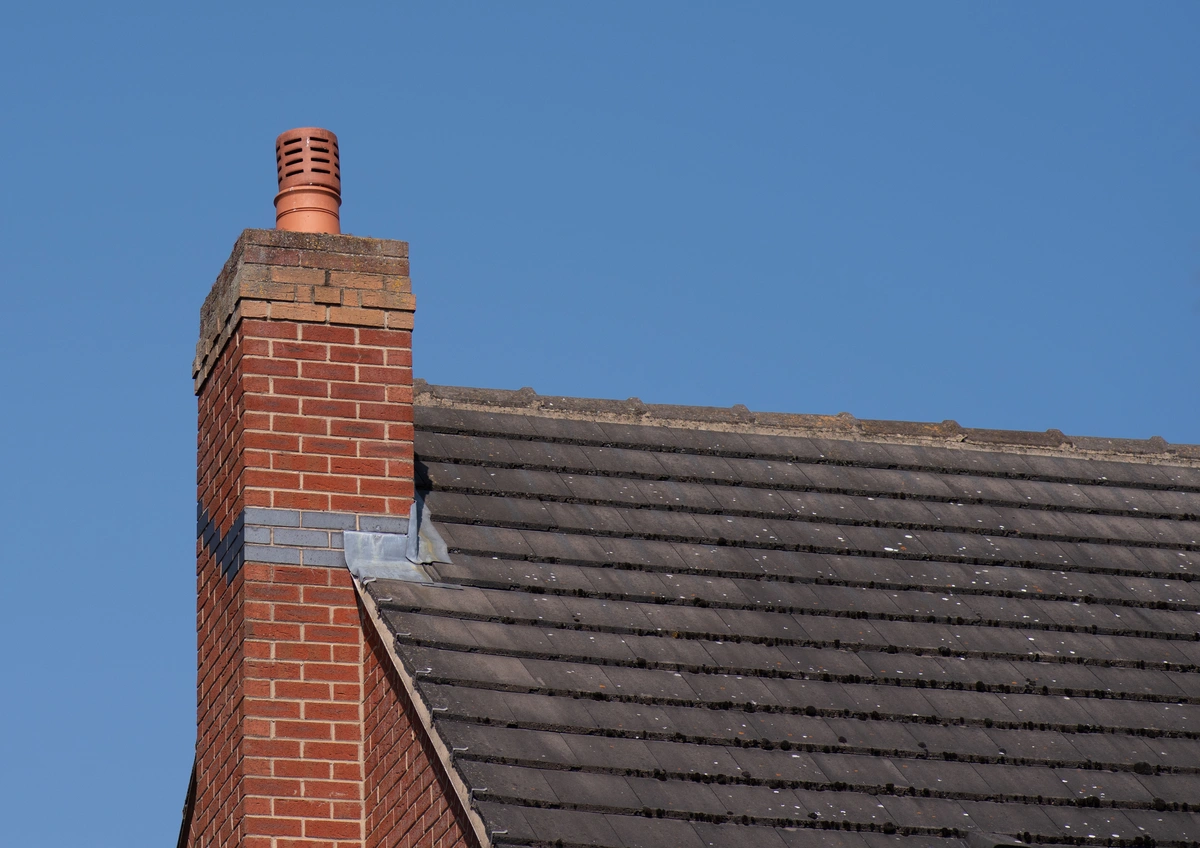

6. Chimney Flashing

Chimney flashing consists of several components that work together to create a watertight seal around the chimney. These components include step flashing, counter flashing, and cricket or saddle flashing (a peaked structure installed on the uphill side of the chimney to divert water around it). Proper installation of chimney flashing is critical to prevent leaks and water damage.

Applications:

• Around chimneys

Materials:

• Copper (durable and visually appealing)
• Galvanized steel (cost-effective and sturdy)
• Aluminum (lightweight and corrosion-resistant)

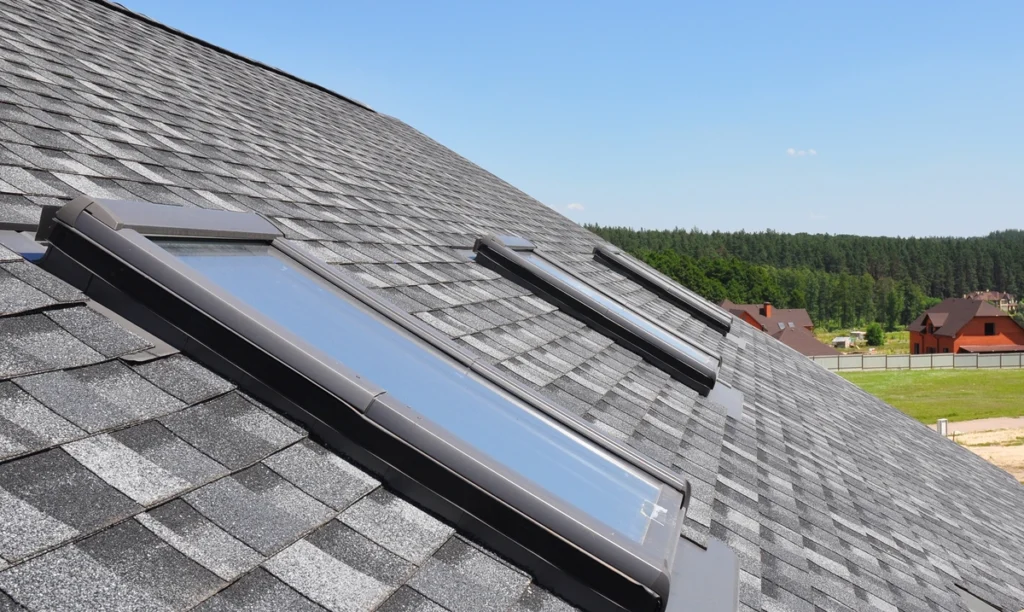

7. Skylight Flashing

Skylight flashing is specifically designed to seal the perimeter of skylights and prevent water infiltration. Most skylights come with a manufacturer-supplied flashing kit, but custom flashing may be required for unique installations. Skylight flashing typically involves step flashing along the sides and continuous flashing along the top and bottom edges.

Applications:

• Around skylights

Materials:

• Aluminum
• Galvanized steel
• Copper

8. Kickout Flashing

Kickout flashing is used where a roof edge meets a vertical wall, directing water away from the wall and into the gutter. It prevents water from running down the side of the house, which can cause rot and damage to the siding. Kickout flashing is a critical component in preventing moisture-related issues in homes.

Applications:

• Roof-to-wall intersections at roof edges

Materials:

• Aluminum
• Galvanized steel
• Copper

🛠️ Choosing the Right Material for Roof Flashing

When selecting the appropriate material for roof flashing, several factors should be considered, including durability, cost, compatibility with other roofing materials, and the specific requirements of the installation. Here is a brief overview of the most common materials used for roof flashing:

• Aluminum: Aluminum is a popular choice for roof flashing due to its lightweight, corrosion resistance, and ease of installation. It can be easily cut and bent to fit various shapes and sizes, making it versatile for different applications. However, aluminum is not as durable as some other metals and may require more frequent maintenance.
• Copper: Copper is highly durable, long-lasting, and aesthetically pleasing, making it an excellent choice for high-end roofing projects. It is resistant to corrosion and can last for decades with minimal maintenance. Copper flashing develops a distinctive green patina over time, which can add to the visual appeal of a building. However, copper is more expensive than other materials and may not be suitable for all budgets.
• Galvanized Steel: Galvanized steel is a cost-effective and durable option for roof flashing. It is coated with a layer of zinc to prevent rust and corrosion, making it suitable for various weather conditions. Galvanized steel is strong and long-lasting, but it can be more challenging to work with compared to aluminum or copper due to its rigidity.
• Lead: Lead is a traditional material used for roof flashing due to its malleability and longevity. It can be easily shaped to fit complex roof structures and provides a durable, watertight seal. However, lead is heavy, expensive, and poses environmental and health concerns, leading to its decline in popularity in recent years.
• Rubber: Rubber flashing is commonly used for vent pipe flashing due to its flexibility and ease of installation. It can form a tight seal around pipes and other penetrations, preventing water from entering the roof structure. Rubber is not typically used for other types of flashing due to its limited durability compared to metal options.

💡 Installation Tips for Roof Flashing

Proper installation of roof flashing is crucial to ensure its effectiveness in preventing leaks and water damage. Here are some essential tips for installing roof flashing:

• Prepare the Surface: Before installing flashing, ensure the surface is clean and free of debris. Remove any old flashing or roofing materials that may interfere with the new installation. A clean surface ensures better adhesion and a more effective seal.
• Use Appropriate Fasteners: Use the recommended fasteners for the type of flashing material you are installing. Galvanized or stainless steel nails and screws are commonly used to prevent rust and corrosion. Avoid using incompatible metals, as this can lead to galvanic corrosion and weaken the flashing over time.
• Ensure Proper Overlapping: When installing step flashing or other overlapping flashing types, ensure each piece overlaps the one below it by at least 2-3 inches. This overlapping creates a continuous barrier that directs water away from vulnerable areas.
• Seal Joints and Seams: Use a high-quality roofing sealant or adhesive to seal joints and seams where flashing pieces meet. This additional layer of protection helps prevent water from seeping through gaps and causing leaks.
• Follow Manufacturer Guidelines: If using flashing kits or pre-fabricated flashing components, follow the manufacturer’s installation guidelines closely. These instructions are designed to ensure the flashing performs as intended and provides optimal protection.
• Regular Inspection and Maintenance: Regularly inspect roof flashing for signs of damage, wear, or deterioration. Promptly address any issues, such as loose fasteners or cracked sealant, to maintain the flashing’s effectiveness. Regular maintenance can extend the lifespan of your roof and prevent costly repairs.

🙌 Trust Puetz Construction for Leak-Resistant Roofing Solutions

Roof flashing is essential for protecting your home from water damage and ensuring your roof’s longevity. Understanding the different types of flashing, their applications, materials, and installation methods is crucial for homeowners, builders, and roofing professionals. By choosing the right type of flashing and ensuring proper installation, you can safeguard your home against leaks and maintain a durable, leak-resistant roof for years to come. Whether constructing a new roof, repairing an existing one, or performing routine maintenance, the information provided in this guide will help you make informed decisions about your roofing needs.
